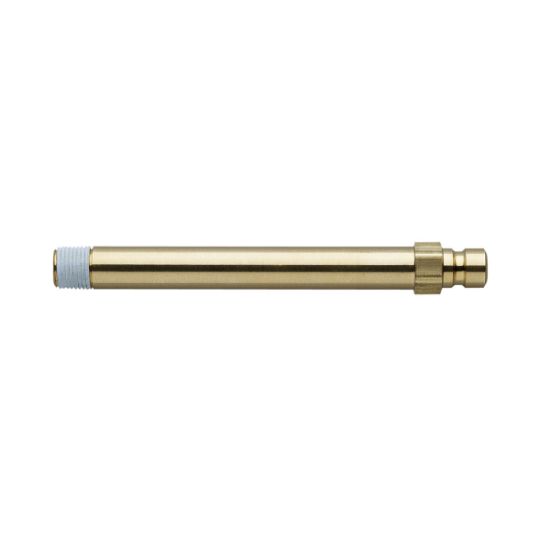

Extended Nipple, Threaded

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.

Name	SW	Ø (mm)	L (mm)	L1 (mm)	A	D (mm)	Qty (pcs)
20N50	11	6	50	9	R1/8	9	10
20N50-1/4	14	6	50	12	R1/4	9	10
20N100	11	6	100	9	R1/8	9	10
20N100-1/4	14	6	100	12	R1/4	9	10
20N150	11	6	150	9	R1/8	9	10
20N150-1/4	14	6	150	12	R1/4	9	10
20N200	11	6	200	9	R1/8	9	10
20N200-1/4	14	6	200	12	R1/4	9	10
20N250	11	6	250	9	R1/8	9	10
20N250-1/4	14	6	250	12	R1/4	9	10
30N50	15	9	50	12	R1/4	13	10
30N100	15	9	100	12	R1/4	13	10
30N150	15	9	150	12	R1/4	13	10
30N200	15	9	200	12	R1/4	13	10
30N250	15	9	250	12	R1/4	13	10
