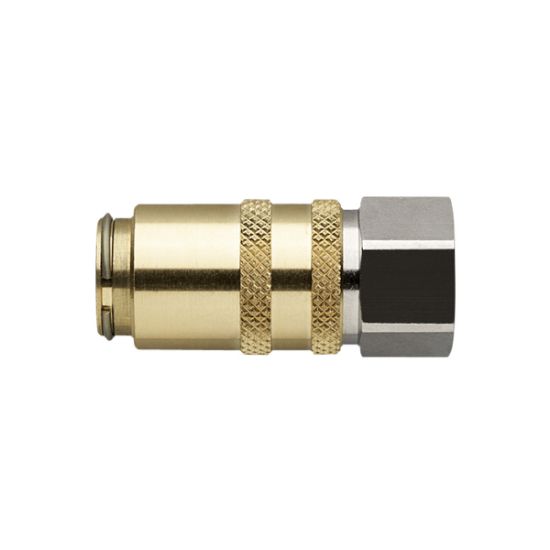

Coupling Female Thread

Coupling series especially developed for connecting coolant lines on injection moulds. Fully interchangeable with other brands with the same plug profiles. All dimensions and tolerances according to original specs. 15 bar, maximum static working pressure with safety factor of 4 to 1.
NameValveSWØ (mm)L (mm)L1 (mm)A (mm)D (mm)Qty (pcs)
09KIR1/4Vyes1764110G1/41810
09KIR1/4no1764110G1/41810
09KIR3/8Vyes1964510G3/81810
09KIR3/8no1964510G3/81810
13KIM16Vyes2194610M16x1,52310
13KIM16no2194610M16x1,52310
13KIR1/4Vyes2194610G1/42310
13KIR1/4no2194610G1/42310
13KIR3/8Vyes2194610G3/82310
13KIR3/8no2194610G3/82310
